Disposable Fast Food Container Machine Equipment 60 Mode Min

Disposable Fast Food Container Machine Equipment 60 Mode Min
Disposable Fast Food Container Machine Equipment 60 Mode Min

Large Image :  Disposable Fast Food Container Machine Equipment 60 Mode Min

Product Details:
Place of Origin: CHINA
Brand Name: QIXING
Certification: CE
Model Number: QX-9063
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOTIATE
Packaging Details: WOODEN CASE OR WRAP FILM CAN BE ADJUSTED ACCORDING TO YOUR DEMANDS
Delivery Time: 30-60 DAYS
Payment Terms: T/T
Supply Ability: 100SETS/YEAR
Detailed Product Description
Features: Multi Layer Co Extrusion, Complete In One Step Condition: New
Warranty: 1 Year COLOR: Can Be Customized
Voltage: AC380V 50/60HZ 3 PHASE, Customization Driven Type: Electric, Pneumatic Or Servo Motor
Port: Shanghai Port, Ningbo Port After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support
Product Name: Disposable Fast Food Box Machine Advantage: Blister Machines That Can Produce Products Directly From Raw Material Pellets
High Light:

Disposable fast food container machine

,

fast food container machine 60 mode min

,

fast food containers machinery

Disposable Fast Food Box Machine Fast Food Container Equipment

High Speed Fully Automatic Eco Friendly Biodegradable Compostable Fast Food Box Forming Making Machine / Maker



Product Description



Our Qixing blister / thermoforming machines (sheet extrusion and blister forming all in one machine) produce a wide variety of packaging types, e.g. trays, containers, hinged boxes, food boxes, plates, bowls, blisters, lids, technical applications, and much more.

Disposable Fast Food Container Machine Equipment 60 Mode Min 0

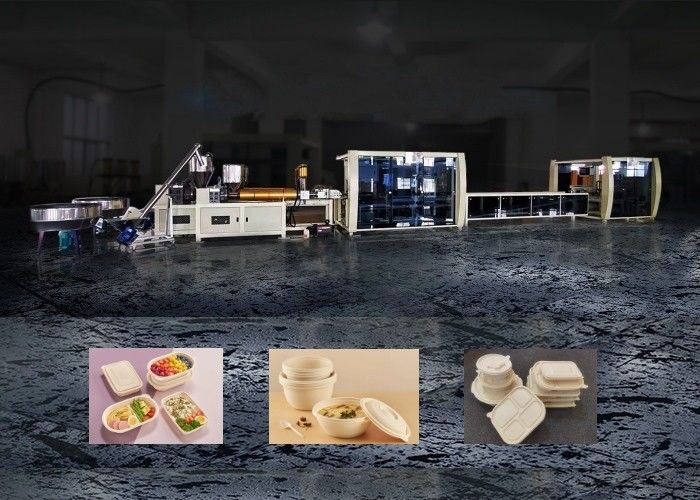

One Step Automatic Sheet Extrusion and blister forming Integrated in one machine Production Line

Disposable Fast Food Container Machine Equipment 60 Mode Min 1



Schematic Diagram of the Process Flow of Sheet Extrusion and Blister Forming All in One Machine

Disposable Fast Food Container Machine Equipment 60 Mode Min 2



Sheet Extruder

Disposable Fast Food Container Machine Equipment 60 Mode Min 3



Blister Forming Machine

Disposable Fast Food Container Machine Equipment 60 Mode Min 4



Product Track

Disposable Fast Food Container Machine Equipment 60 Mode Min 5



Fully Automatic Punching Cutting Machine

Disposable Fast Food Container Machine Equipment 60 Mode Min 6



Product Advantages



• Cut costs

Sheet extrusion and blister forming all in one machine, that can produce products directly from raw material pellets (including leftover materials, fillers, etc.), with one step in place to complete the extrusion sheet and plastic molding all the processing processes, which may be the equipment with the least investment, the lowest production cost and the highest production efficiency.



• Increase productivity

Our fully automatic production line Integrates extrusion, forming, cutting, stacking and counting, which can bring you more productivity.


• Low Machinery Investment

Each line comes with all associated equipment that clients need to produce products: sheet extruding machine, forming machine, automatic punching machine and cutting machine, one set of customized mold and punching knife.


• Low Energy Consumption

The sheet extruding machine produces sheets directly for product forming and punching. one-time heating only, No secondary heating requires, saves power.


• Adapt Multi-Material

PP, PS, PE, EVOH, PLA, PBAT, plant straw, rice husk, rice bran, bamboo powder, starch and other compostable plant fiber.


• Multi-Application

By changing mold, the machine line is able to produce takeaway boxes, fast food boxes, burger boxes, cake box, bread box, sandwich box, various food containers, clamshell boxes, takeout boxes, fruit and vegetable packaging boxes, supermarket food tray, bowl, plates, etc. All molds can be customized according to the client's needs.



• Wide range of applications

This machine is particularly advantageous for food lunch box products, and can also be widely used in the production of food, electronics, toys, hardware and other packaging products, as well as the inner tray of industrial packaging products.


• Durable and Reliable

The machine line is able to be running 24 hours without problem, Only Requires basic maintenance.


• No material wastage

Side material can be smashed and re-mixed to be used again. There is no material wastage, no gas pollution, and no water pollution during the production process.


• High Automation and Easy Operation

Two workers are able to operate the full line each shift. One worker for packing and one for side material re-usage, saves labor costs.



• Save money

The machine reduces investment by about 50%, saving 30% of electricity, improving efficiency by 30%, reducing labor intensity, and enhancing economic benefits.



Scope Of Application



Our machines are suitable for the following materials :

1. Thermoplastics: PP, PS, PE, EVOH, etc.

2. Thermoplastic biodegradable plastics: PBAT and PLA, etc.

3. Bio-based degradable environmentally friendly materials, fully biodegradable plant fiber materials: grain fiber, corn starch, plant straw, rice husk, rice bran, bamboo powder, wood powder, bagasse, etc.

4. Bio-based composite materials, biodegradable plant fiber blend materials: talcum powder, calcium carbonate, etc.

5. Multilayered materials, Mineral-filled materials.



Our machines are not suitable for the following materials: PET, PVC, ABS



Three/Triple Screw One Step Extrusion Blister Forming Integrated Machine Configuration

Accessories Quantity Note
ф90/90/65/blister molding machine one Four-layer co-extrusion ABCA
1250 high speed chain forming machine one Form in 0.2 seconds
1250 pneumatic forward/recoil punch one Other replaceable punches:
Servo Punch, Auto Point Auto Stack Low Noise Electric Punch
Cast aluminum mold one
Press cutter one Hardware mold



The Main Parameters of QH-90/90/65
Max output per hour 315-375kg Electric consumption per hour 55-60KW
Maximum molding area 850MM*300MM Production speed 45-60 mode/min
Maximum molding depth 80MM-120MM Operator needed 2
Vacuum forming speed 0.2 seconds Dimension of the product Length:12.5-15M, Width:2M
Product thickness range 0.2MM-0.9MM Whole weight of the product 6.8 ton



The Main Parameters of QX90/90/65 Three/Triple Screw Automatic Production Line
Machine type accessories type brand note
Blister Molding Machine Mold 1200MM Ogilvy
Layered device page-swinging ABCA Ogilvy
90 Net changer *2 Type 120 Ogilvy Hydraulic net changing
65 Net changer Type 100 Ogilvy Hydraulic net changing
90 Gear box Type 200 Fen jin
65 Gear box Type 173 Fen jin
The 90 screw *2 90*3000 Jing Zheng
The 65 screw 65*2100 Jing Zheng
The 90 motor *2 30KW Zhe jiang Great speed
The 65 motor 11KW Zhe jiang Great speed
The 90 inverter *2 30KW Wei Chuang
The 65 inverter 11KW Wei Chuang
Temperature controlled circuit breaker Solid state relay Meg 90A
contactor   Zheng Tai
Heating coil Infrared ray
Hydraulic station Three way manual valve
Forming machine high speed forming machine 850MM Form in 0.2 seconds vacuum pump included
Automatic punching machine pneumatic forward/recoil punch 850MM   sent pieces with the servo
Mould One set Along with the sample
Toolkit One set
Wearing parts One set



Auxiliary Equipment (Optional, Available for Purchase on Behalf Of)

High Collocation Fully Automatic Feeding Machine
Machine type quantity Note
700CM Pulverizer 1 You can buy it yourself from the local factory, if you don’t need fully automatic material feeding machines, three mixing pots and one pulverizer machine are enough, if you have these machines in your factory you can spare the money.
One ton stand mixer 1
0.5 ton stand mixer 1
3.5M fully automatic material feeding machine 2
mixing pot 1




WHY CHOOSE US



1. Professional Team

Professional service can recommend suitable products for you.

Factory direct sales can provide optional parameter customization.



2. Quality assurance

Our company has its own research&development and production base, the products have been seriously inspection the process department to control the quality before they leave the factory, ensure you receive a good quality machine.



3. Quick shipment

Whether you have your own freight forwarder or want us to organize the shipment, our purchasing department and the logistics department can do their best for you. We will provide the best transportation arrangement, according to your plan, to maximize your efficiency.



4. Shopping Guarantee

We have a professional service team, we can give you useful advice and the best packing solution. 24 hours online service strives for an immediate response to provide you with a wonderful procurement experience.



Our Services



We always consider the requirements and applications, while we design/fabricate machines. To assist us in this, we have various professionals who possess profound domain knowledge and expertise to set market trends and fulfill clients' requirements. They work round the clock, in close coordination, to help us fabricate an unmatched range of thermoforming machines that are easy to use, suitable for steady and fast production and energy efficient.



We have our own design team and quality assurance team, and having more than 15 years of experience in providing the complete solution, we can design the product line according to customers' requirements.



One stop turnkey solutions: Thermoforming machines and tools, downstream automation, product custom development, Provide raw materials for production.



We excel through versatility and flexibility, delivering a productivity advantage and the best possible product to our customers.



We are your one-stop supplier: From product design to the process to the tool and the custom automation - the Qixing team is your effective and reliable partner, supporting you in every phase.
